How to Rebuild a Welded Hydraulic Cylinder?

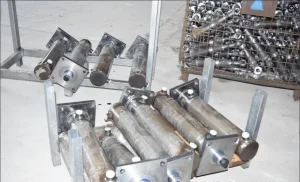

Welded hydraulic cylinders play a remarkable role in fluid power systems. They transform hydraulic force into linear motion and help optimize work efficiency across heavy machinery, construction equipment, and industrial applications.

Whether pressing, lifting, or pushing, heavy-duty tasks can lead to wear and component degradation over time. Timely inspection and proper rebuilding restore your cylinder to OEM performance and prevent unexpected system failures.

This guide provides a professional, step-by-step procedure to rebuild a welded hydraulic cylinder safely and efficiently.

Why should you rebuild a welded hydraulic cylinder?

Rebuilding a hydraulic cylinder offers significant operational and financial benefits compared to full replacement:

Cost efficiency: Rebuilding a cylinder by replacing internal seals and worn components typically costs 20% to 30% of a brand-new unit, significantly reducing maintenance overhead.
Reduced downtime: Sourcing specialized or custom-welded cylinders can involve long manufacturer lead times. Rebuilding on-site or through a local workshop gets your machine back in service much faster.
Sustainability: Reusing structural components like the barrel, rod, and end caps keeps heavy materials in service and reduces industrial waste.

Signs that show you need to rebuild

Before disassembling your equipment, inspect for these key indicators of cylinder wear or internal failure:

Leaking hydraulic fluid: Fluid weeping past the wiper seal on the rod, or visible pooling around the gland/ports, indicates seal degradation.
Decreased performance / cylinder drift: Unintended retraction under load or slower operating speeds indicates internal fluid bypass around the piston seal.
Abnormal sounds: Excessive knocking, grinding, or high-pitched whining often signals cavitation, fluid contamination, or metal-to-metal contact inside the barrel.
Physical damage: Scratches, gouges, or bending on the piston rod, as well as denting on the cylinder barrel, require immediate servicing.

Tools and materials needed for rebuilding

Proper preparation is essential for a clean, damage-free rebuild. Gather these tools before starting:

Hydraulic seal kit: Match exact manufacturer specifications (includes rod seals, piston seals, wear rings, O-rings, and backup rings).
Gland spanner wrench / pin wrench: Essential for safely unthreading or removing the rod gland without damaging the housing.
Snap ring pliers: For removing internal or external retaining rings.
Torque wrench: For precise reassembly of the piston nut and mounting hardware to factory specs.
Soft-face mallet and brass drift: For gently tapping the rod assembly out of the barrel.
Clean solvent and lint-free rags: For thorough degreasing and cleaning of internal surfaces.
Measuring tools (calipers / micrometers): To measure rod straightness and check barrel inner diameter (ID) for out-of-round wear.
Fresh hydraulic oil: For lubricating new seals during installation and refilling the system.
Safety gear: Protective eyewear, oil-resistant gloves, and safety footwear.

Safety first: pre-operation warning

Critical safety notice

Hydraulic system depressurization: Always lower all attachments to the ground, shut down the power unit, and actuate control levers in both directions to relieve all residual hydraulic pressure before loosening any line or fitting. High-pressure fluid injection can cause severe injury.
No heating / cutting near flammables: Never use a cutting torch or open flame on a sealed or oil-filled cylinder. Trapped oil vapor can ignite or explode.
Protect internal seals from welding heat: If any welding is required on external mounts or end caps, perform welding before installing new rubber or polyurethane seals, or keep heat-sensitive components well away from the heat zone.

Step-by-step instructions to rebuild a welded hydraulic cylinder

Step 1: Prepare your workspace and relieve pressure

Set up a clean, dust-free workbench equipped with a vice or cylinder bench.
Fully depressurize the hydraulic system.
Disconnect hydraulic hoses and cap all open ports to prevent environmental contamination.

Step 2: Drain hydraulic fluid

Position a drain pan under the cylinder ports.
Slowly manually extend and retract the piston rod to purge remaining hydraulic fluid from both chambers.

Step 3: Disassemble the gland and retaining mechanism

Identify the gland retainer: Welded cylinders typically secure the gland using a threaded retainer, internal wire lock ring, or snap ring—not a welded seam.
Remove retainers: Use snap ring pliers for retaining rings, or insert a wire-lock extraction tool if equipped.
Unthread the gland: Use a gland spanner wrench to unthread the head/gland from the barrel.

Step 4: Extract the rod and piston assembly

Carefully pull the piston rod straight out of the cylinder barrel. Support the rod along its length to prevent scoring the internal honed wall.
Use a soft-face mallet if initial breakaway force is needed.

Step 5: Disassemble rod and remove worn seals

Secure the rod clevis in a vice fitted with soft aluminum or copper jaws.
Unthread the piston locknut using a torque wrench or breaker bar.
Slide the piston, gland, and spacer off the rod.
Use a soft seal pick to remove old O-rings, U-cups, wiper seals, and guide rings from the piston and gland grooves.

Step 6: Clean, inspect, and measure

Wash all metal components with clean solvent and dry with lint-free towels or compressed air.
Inspect the rod: Check for straightness, pitting, or chrome flaking. Minor burrs can be dressed with fine emery cloth (400+ grit).
Inspect the barrel ID: Look for deep scratches, scoring, or corrosion inside the cylinder wall.
Check dimensions: Use calipers/micrometers to ensure tolerances match seal kit specifications.

Step 7: Install new seals and O-rings

Clean seal grooves thoroughly.
Coat new seals, O-rings, and wear bands with clean hydraulic oil before installation.
Carefully flex U-cup seals into their grooves without using sharp tools that could scratch or nick the seal lip.

Step 8: Reassemble rod assembly and torque to spec

Slide the gland and piston back onto the rod in correct orientation.
Apply thread locker to the piston nut threads (if specified by OEM) and tighten the nut to the recommended torque value using a calibrated torque wrench.

Step 9: Reinsert assembly into the barrel

Apply a generous coat of clean hydraulic oil to the barrel inner wall, piston seals, and gland seals.
Carefully align the piston with the barrel end and push the assembly straight in. Ensure seals enter the chamfer smoothly without pinching.
Thread and tighten the gland using the spanner wrench, then reinstall snap rings or wire lock rings.

Step 10: Test the system

Reconnect hydraulic lines to the cylinder ports.
Bleed trapped air from the cylinder by cycling the rod slowly through several full strokes at low pressure without load.
Check for smooth travel, proper holding pressure, and zero external leakage around the gland and ports.

Conclusion

Rebuilding a welded hydraulic cylinder is an effective way to restore system efficiency, eliminate leaks, and extend equipment service life while controlling operating costs. By using the proper specialized tools, following systematic inspection steps, and observing strict hydraulic safety protocols, you can achieve reliable, leak-free performance.

For custom welded cylinders, seal kits matched to your bore and rod, or OEM replacement programs, contact HydraulicsMfg with your cylinder model, stroke, and port details.
