Custom & Heavy-Duty Hydraulic Cylinder Solutions
HydraulicsMfg is a hydraulic cylinder manufacturer for OEM and industrial applications — engineered bore, stroke, and rod specs, hard chrome piston rods, honed tubing, and polyurethane or Viton seal packages — with valves, pumps, and motors for complete system integration. Custom hydraulic cylinders & fluid power components. Double-acting and single-acting designs, clevis, flange, cross-tube, and trunnion mounts — built for working pressure ratings you can trust in the field.
Core competency — ~70%
Hydraulic Cylinder Manufacturing
Custom OEM/ODM hydraulic cylinders for mobile and industrial machinery — from prototype to high-volume production.

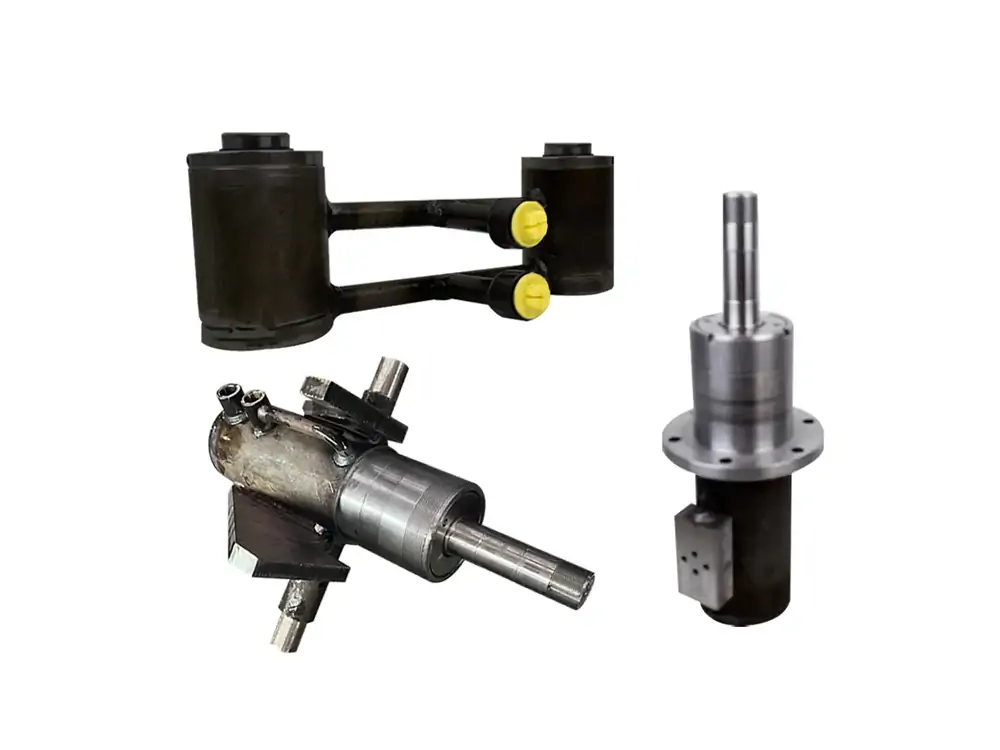

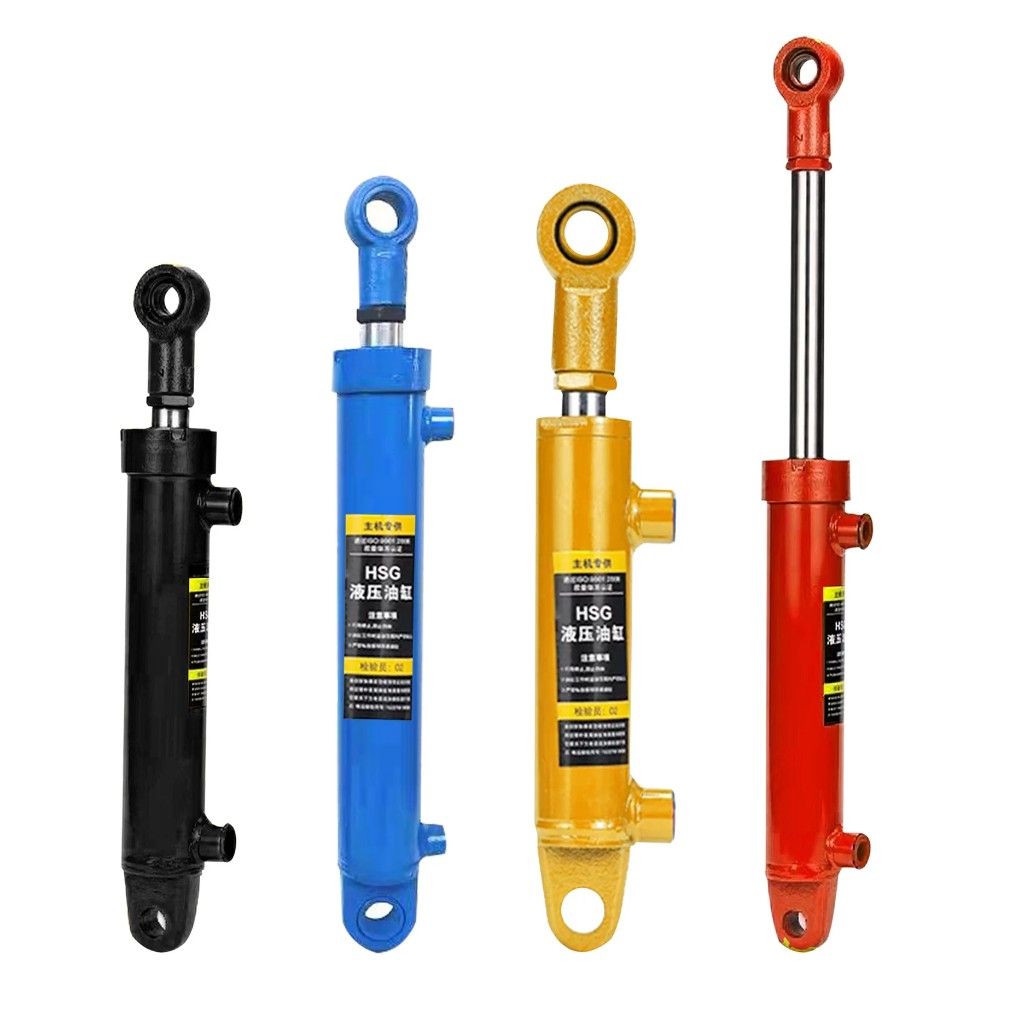

Custom Hydraulic Cylinders
OEM hydraulic cylinder design and manufacturing to your drawings: cylinder bore, stroke length, piston rod diameter, and working pressure (PSI / bar / MPa). Rapid prototyping and global export standards.
Welded & Tie-Rod Cylinders
Heavy-duty welded hydraulic cylinders and tie-rod cylinders for industrial presses, material handling, and replacement on excavator and loader hydraulics.
Telescopic & Double-Acting

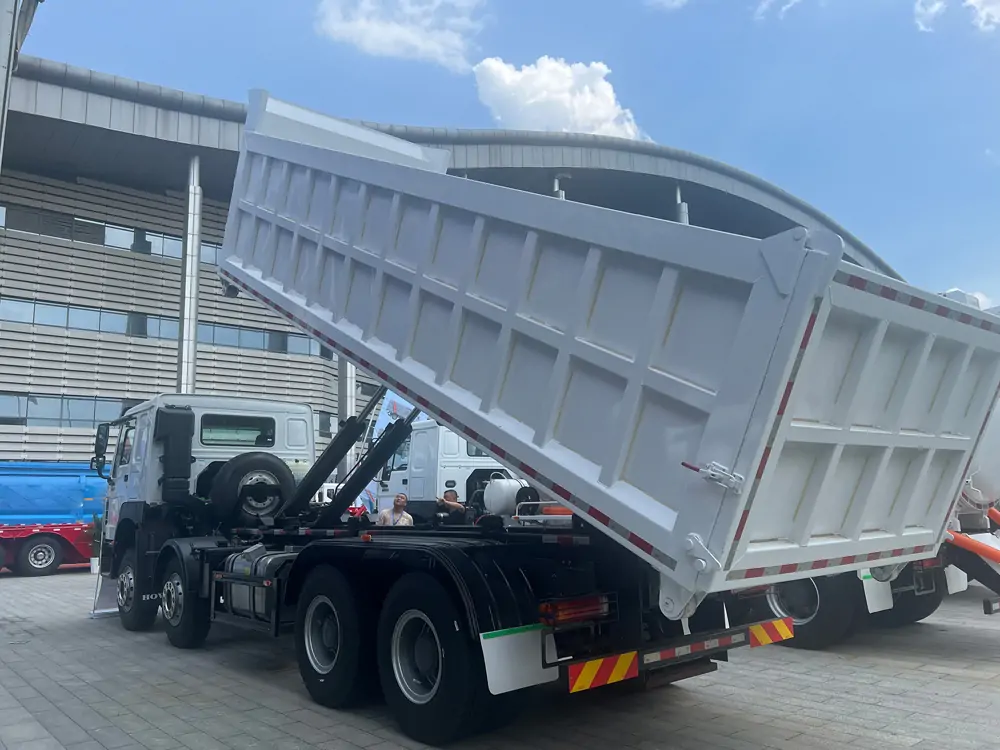

Telescopic cylinders for dump truck hoists and waste management; double-acting cylinders with optional cushioning for construction and mining machinery.
Rods, Seals & Mounting

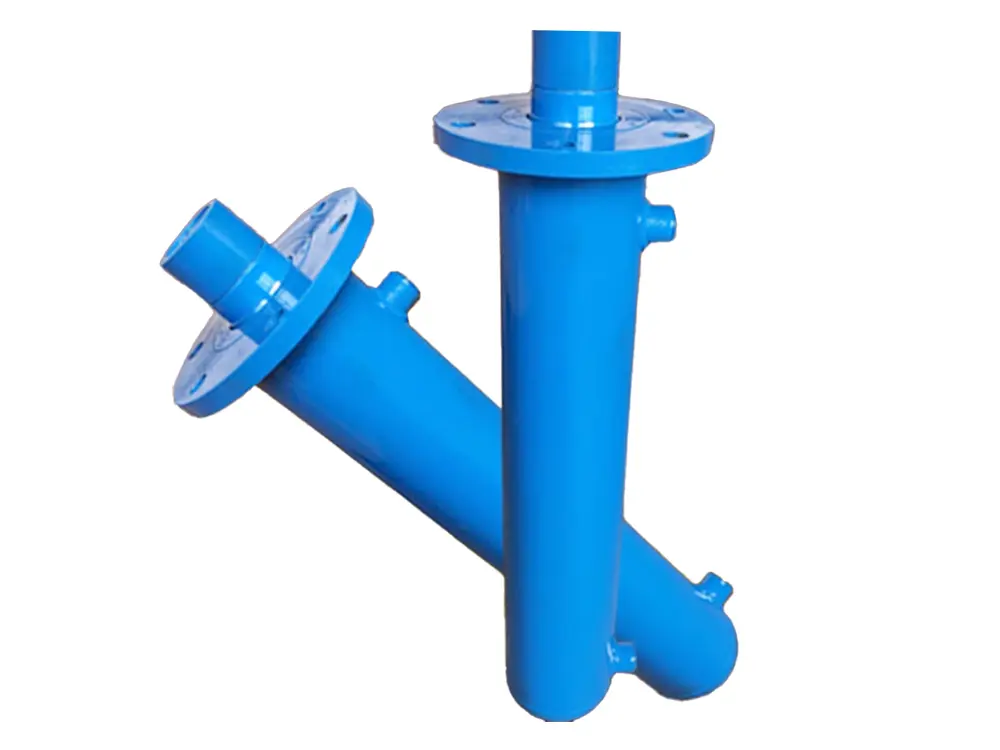

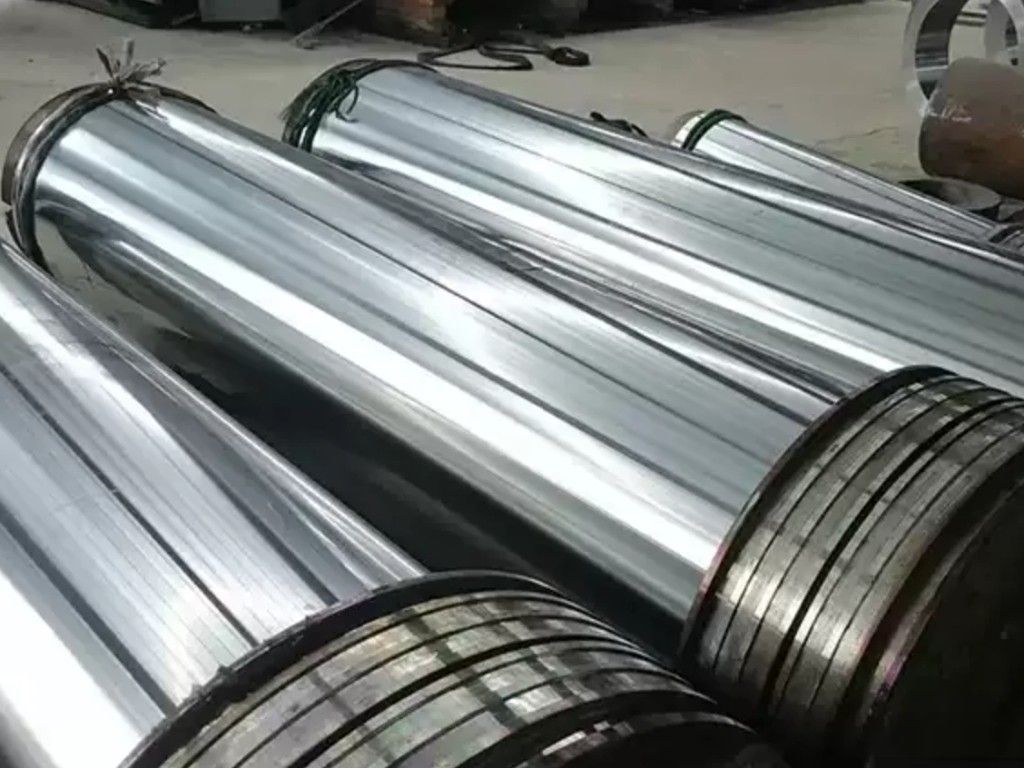

Hard chrome plated rod, honed tubing, and seal systems (polyurethane, Viton). Clevis mount, flange mount, cross-tube mount, and trunnion mount configurations.
System components — ~30%
Valves, Pumps & Motors
Directional control, relief, and flow regulation — paired with gear, piston, and vane pumps and high-torque hydraulic motors for complete HPUs and mobile circuits.
Hydraulic Valves
Directional control valves, relief valves, flow control valves — spool, monoblock, sectional, solenoid, cartridge, counterbalance, and check valves for load holding and system regulation.
Hydraulic Pumps
Industrial hydraulic gear pumps, piston pumps, and vane pumps. Fixed and variable displacement, axial and radial piston options for power packs and injection molding support.
Hydraulic Motors
High torque low speed (HTLS) and orbital hydraulic motors — gerotor/geroler designs for winch drives, conveyor systems, track drives, and agricultural harvesters.
Why HydraulicsMfg
Built for Pressure. Tested for Zero-Leak Performance.
Engineering-driven B2B manufacturing
From spec review to shipment — authoritative fluid power solutions, not catalog retailManufacturing depth

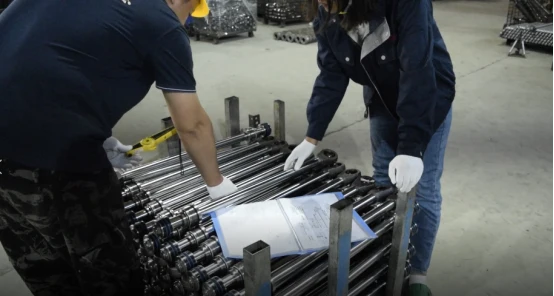

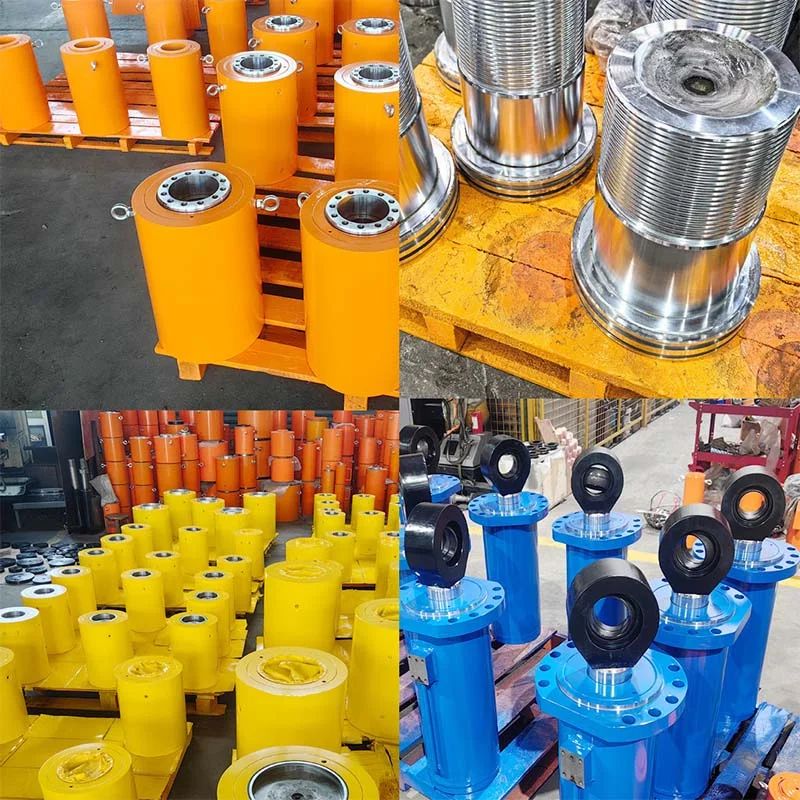

CNC machining, precision honing, automated welding, and controlled chrome plating thickness — processes aligned with long service life and repeatable bore finish.
Validation & certification
100% pressure testing and hydrostatic testing on critical builds. Quality systems aligned with ISO 9001 expectations and traceable material records.
OEM partnership model
Custom OEM/ODM capabilities, engineering support for hydraulic cylinder replacement on heavy machinery, and export-ready documentation.
Cylinder engineering data
We work from your bore, stroke, rod, port, and mount requirements — including double-acting vs single-acting logic and cushion requirements for high-cycle equipment.
Valve & pump sizing support
Flow rate (GPM / L/min), maximum operating pressure, and circuit architecture for mobile equipment control and hydraulic power units (HPUs).
Motor torque & speed matching
Torque output (Nm / lb-ft) and rotational speed (RPM) selection for winches, conveyors, and track drive machinery.
Application documentation
Datasheets, test reports, and maintenance guidance for construction, agriculture, marine, and mining fleets.
Construction & earthmoving

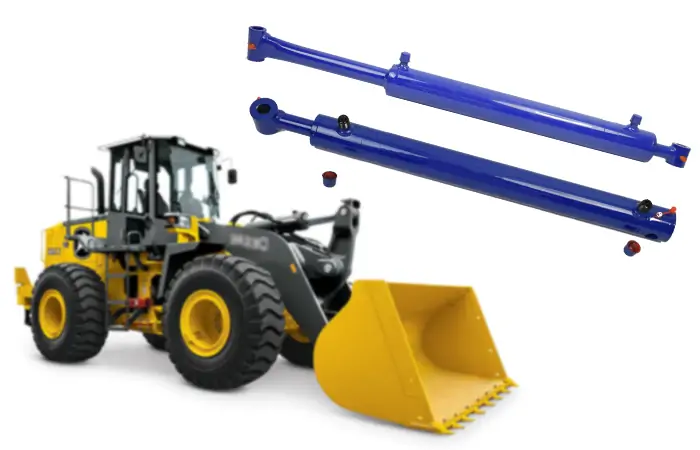

Excavator cylinders, loader cylinders, and heavy-duty replacements designed for dirt, shock, and continuous duty.
Mining & industrial press
High-pressure welded cylinders for mining machinery and industrial hydraulic presses with stringent safety margins.

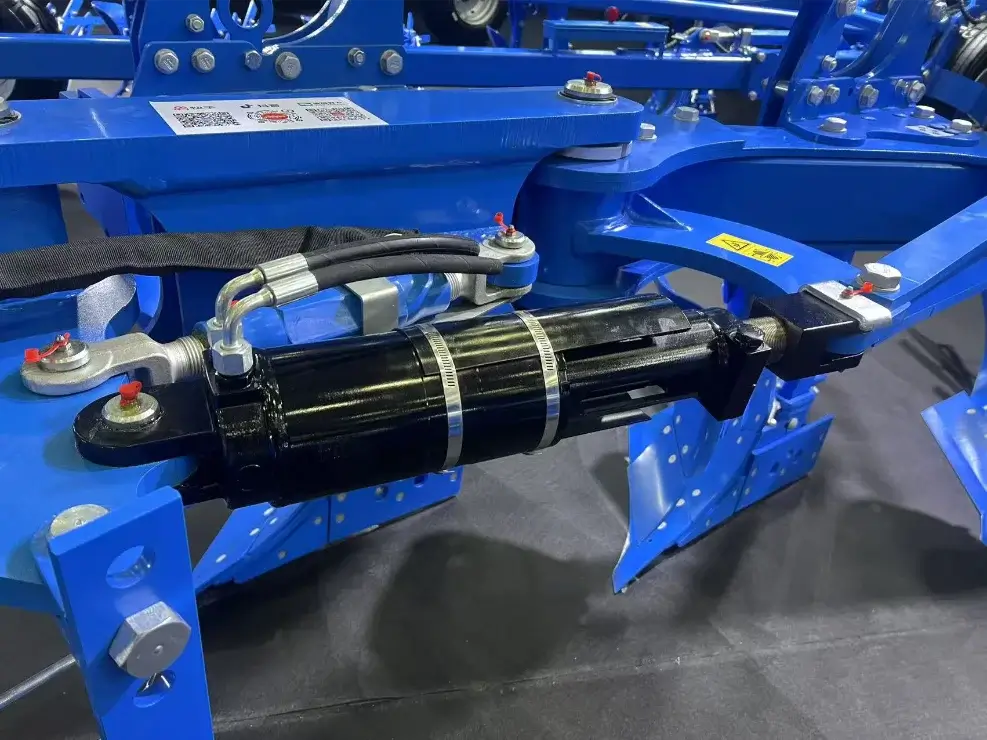

Agriculture & marine
OEM programs for agricultural equipment hydraulics and marine & offshore circuits with corrosion-aware seal choices.
Material handling & waste
Dump truck hoists, compactors, and conveyor drive motors — matched valves and pumps for reliable load holding.
From RFQ to tested cylinders on your timeline.
Step 1: Technical inquiry
Share application, mount type, bore/stroke/pressure targets, quantity, and any reference part numbers. Our engineers respond with feasibility and lead time within 24–48 hours.
Step 2: Design & prototype
Custom hydraulic cylinder design validation, seal selection, and prototype builds — including sample units for fit and cycle testing before production release.

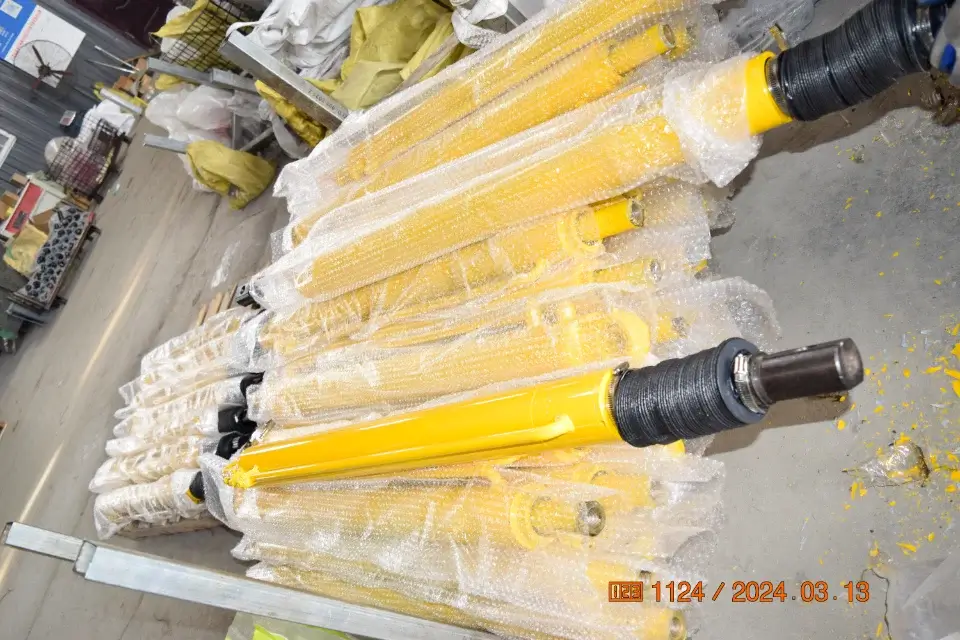

Step 3: Build, test, ship
Production with hydrostatic testing, packaging for export, and logistics coordination. Zero-leakage targets and documented test results on request.
Done!
Markets
Applications & Industries
Hydraulic cylinder and component programs for demanding mobile and industrial environments
Excavator, loader, and crane hydraulics — custom cylinders and replacement programs.
High-pressure welded cylinders and robust seal packages for abrasive conditions.

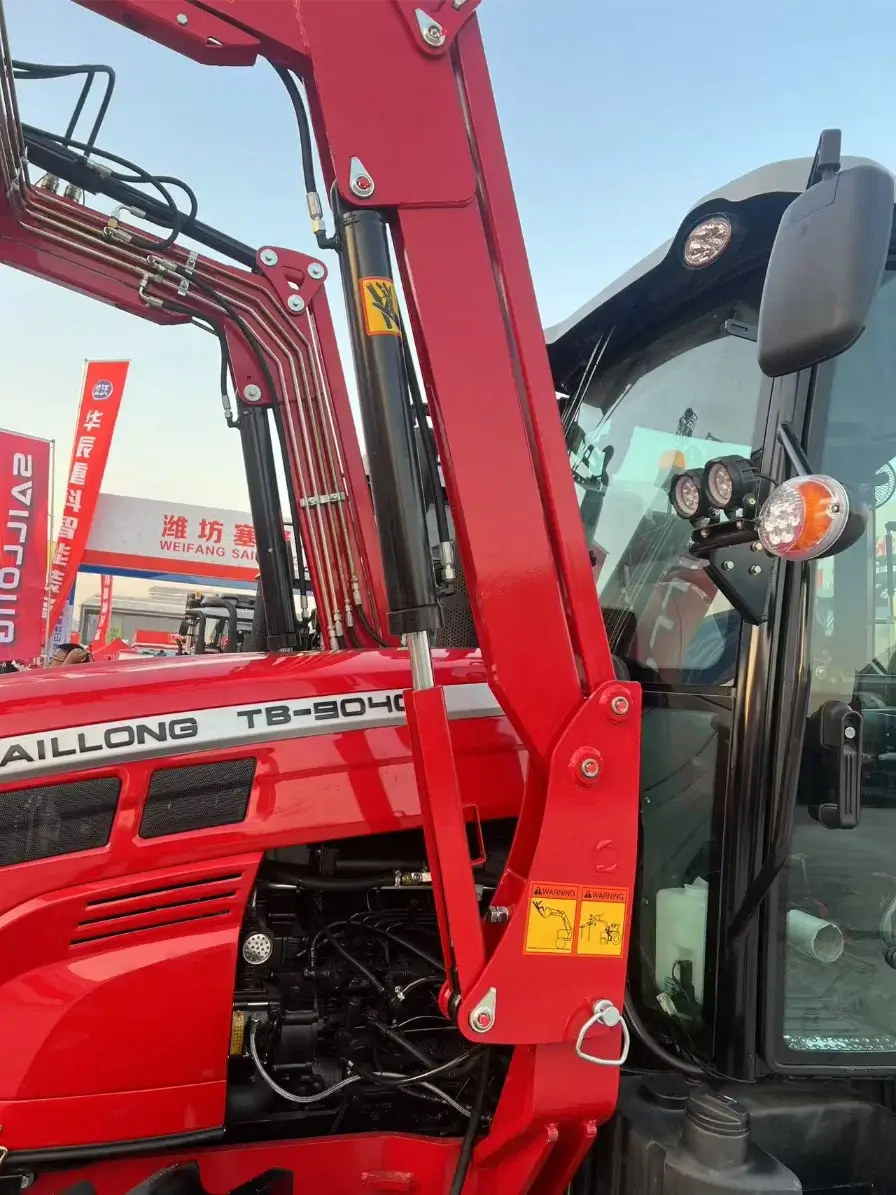

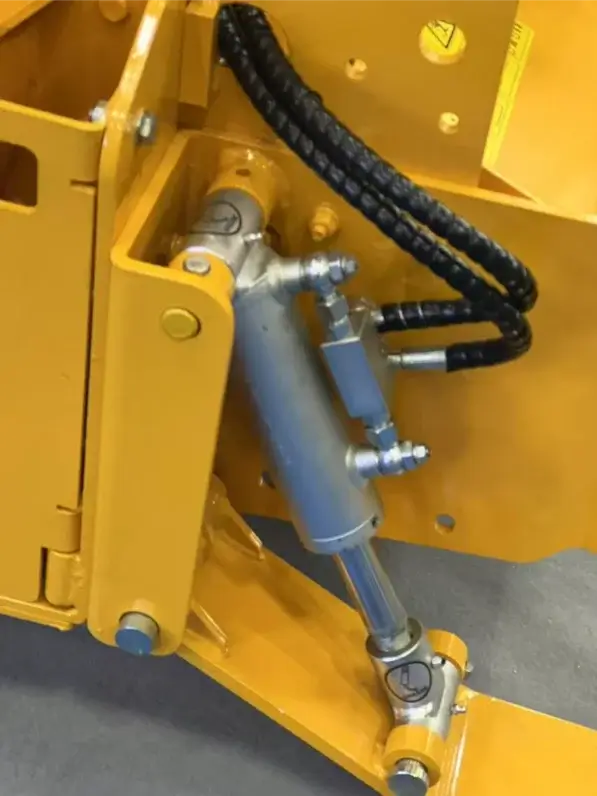

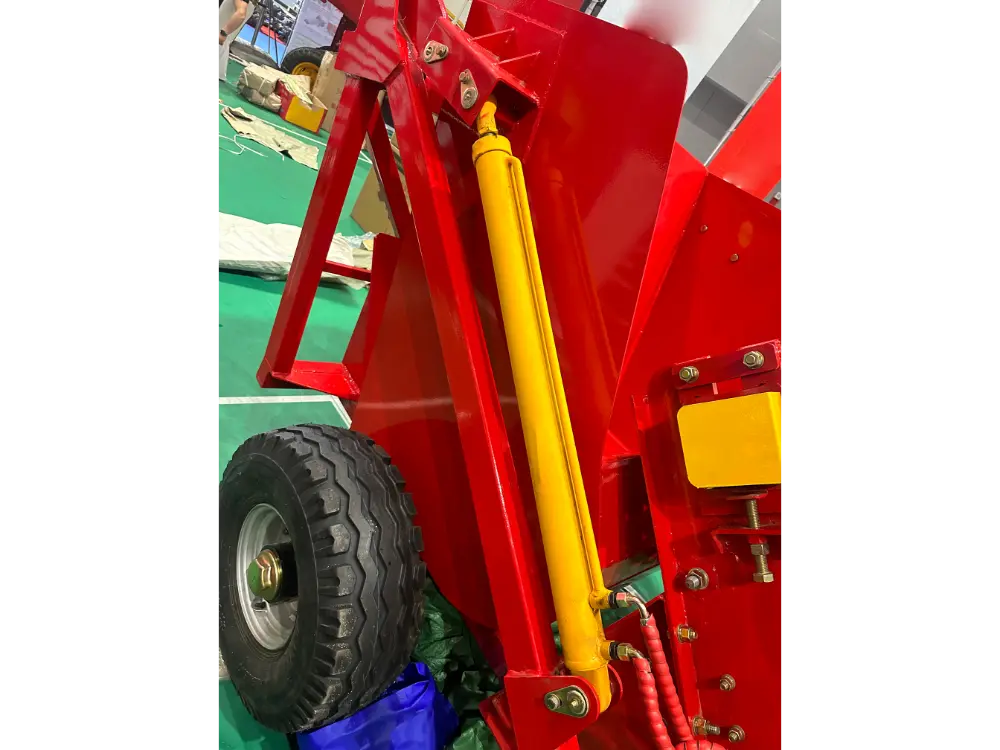

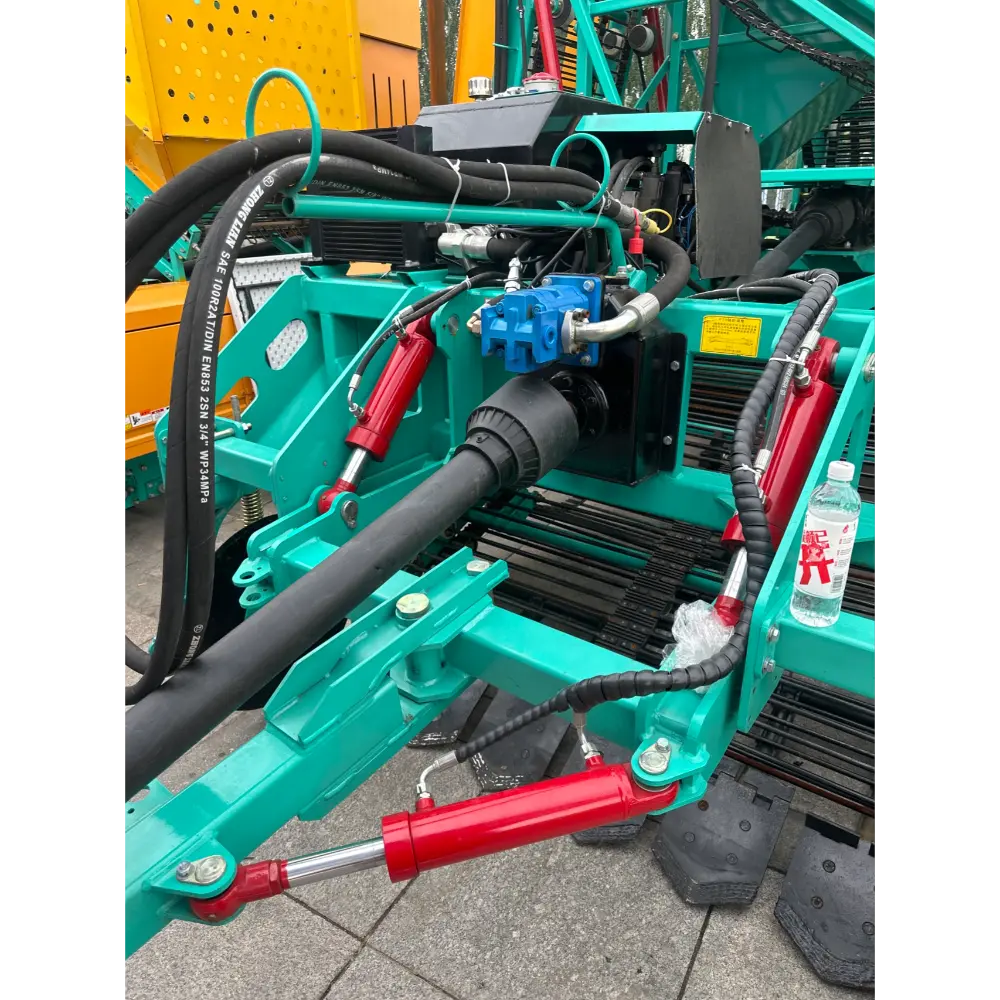

OEM and aftermarket cylinders, orbital motors for harvest and material handling.
Corrosion-aware rod and seal choices for deck and subsea-adjacent hydraulics.
Tie-rod and welded cylinders for stamping, forming, and heavy load holding.
HPUs, directional valves, and motors for conveyors, lifts, and automated lines.

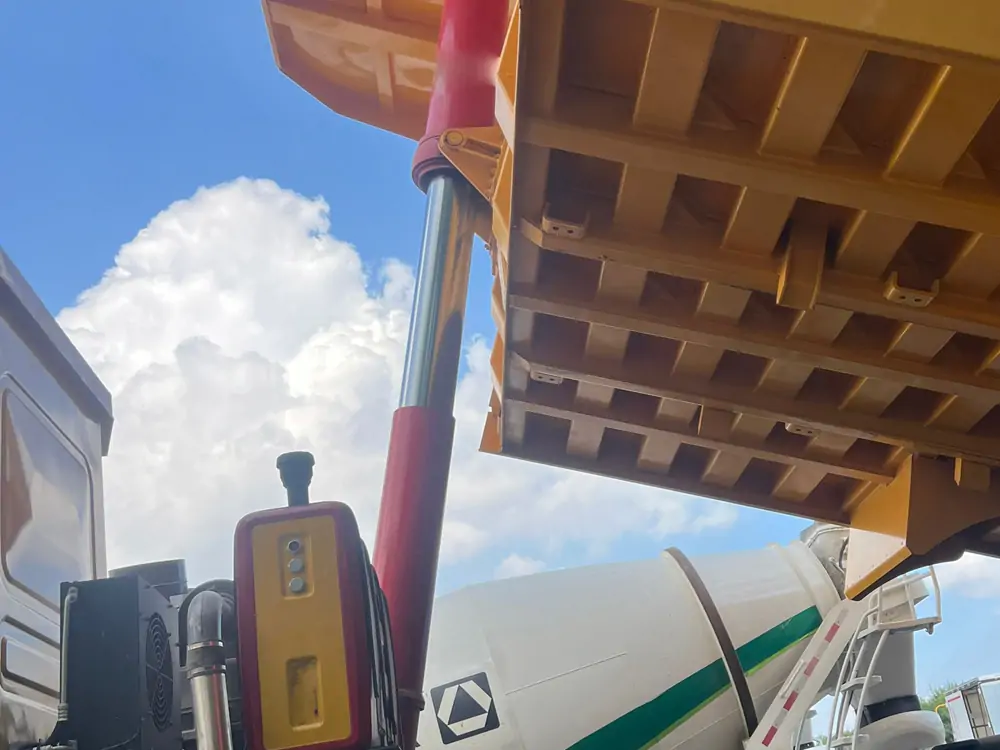

Telescopic hoist cylinders for dump trucks and compaction equipment.
Long-term supply agreements, volume pricing, and engineering change support.
Documentation and packaging aligned with international OEM delivery requirements.
FAQs
Frequently Asked Questions
Hydraulic cylinder manufacturing, component selection, and OEM partnership — technical answers for buyers and engineers.
Are you a hydraulic cylinder manufacturer or distributor?
HydraulicsMfg is a manufacturer focused on custom and heavy-duty hydraulic cylinders — welded, tie-rod, and telescopic designs — with complementary valves, pumps, and motors for integrated fluid power supply.
What specifications do you need for a custom cylinder quote?
Bore, stroke, rod diameter, working pressure, mount type (clevis, flange, cross-tube, trunnion), port size, cushioning needs, and quantity. Drawings or sample parts accelerate OEM hydraulic cylinder design and manufacturing.

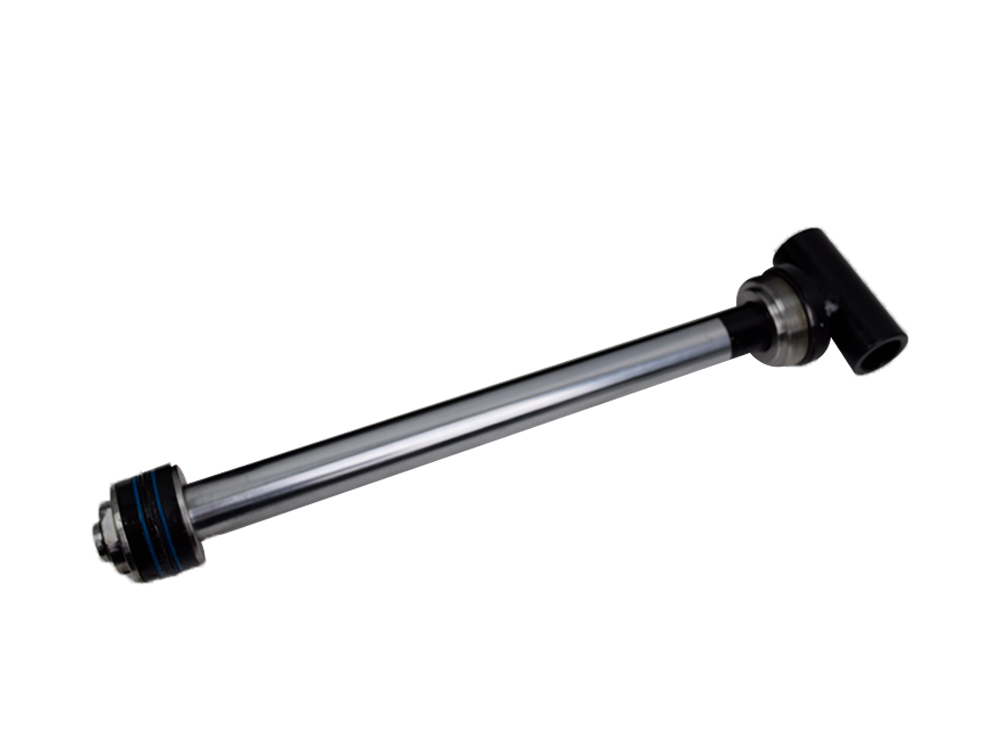

Do you build double-acting and single-acting hydraulic cylinders?
Yes. Double-acting cylinders are standard for most mobile and industrial motion; single-acting with spring or load return where applicable. We confirm duty cycle and pressure spikes before seal selection.
Which hydraulic valves and pumps do you supply?
Directional control, relief, flow control, solenoid and cartridge valves; gear, piston, and vane pumps for fixed or variable displacement applications. We match GPM/L/min and maximum operating pressure to your HPU or machine circuit.
How do you validate quality before shipment?
Precision honing, controlled chrome plating, automated welding, and 100% hydrostatic / pressure testing on production runs. Test reports and ISO-aligned procedures are available for qualified OEM programs.
How do I start an OEM or replacement cylinder project?
Use our Contact page with application details and target specs. We provide quotes, prototype options, and lead times for hydraulic cylinder replacement on heavy machinery or new OEM platforms.
Ready to
Spec Your Hydraulic Cylinder?
Custom bore, stroke, mounts, and seal packages — plus valves, pumps, and motors for complete systems.
Talk to our engineering team today.
