3-Stage Telescopic Hydraulic Cylinder for Dump Trucks: Selection & Technical Guide

Introduction

Dump truck hoisting systems demand significant lifting capacity within tight chassis clearances. Standard single-stage cylinders often require impractically long retracted housings, forcing awkward frame cutouts or compromises in truck bed depth. A 3-stage telescopic hydraulic cylinder addresses this by nesting multiple sleeve stages inside a single main barrel, achieving maximum stroke length relative to its compact collapsed dimensions.

Whether you are designing a custom tipper body or sourcing replacement cylinders for a fleet, understanding multi-stage extension dynamics, side-load limitations, and mounting geometry is crucial for preventing field failures and optimizing cycle times.

Technical Comparison: Why Choose a 3-Stage Cylinder?

Before specifying a cylinder, evaluate how a 3-stage configuration compares against alternative hoisting setups:

Metric / Feature	Single-Stage Rod Cylinder	3-Stage Telescopic Cylinder	5-Stage Telescopic Cylinder
Collapsed Length	Very Long (1:1 Ratio)	Compact (1:3 Ratio)	Ultra-Compact (1:5 Ratio)
Max Tipping Angle	Limited by clearance	High ($45^\circ – 55^\circ$)	Very High ($50^\circ – 60^\circ$)
Side-Load Resistance	High	Medium-High (Balanced)	Lower (Higher flex risk)
Cost & Complexity	Low	Optimal for Medium/Heavy Dumpers	High (More seal points)

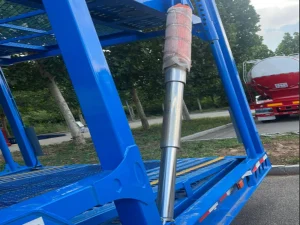

What is a 3-Stage Telescopic Hydraulic Cylinder?

A 3-stage telescopic hydraulic cylinder consists of an outer barrel housing two nested tubular sleeves and an inner piston rod. When pressurized fluid enters the base, each stage extends sequentially to extend the total stroke length up to three times the cylinder’s closed height.

This design makes 3-stage cylinders the preferred choice for front-mount hoists and under-body tipper configurations on rigid chassis and semi-trailers.

Extension Mechanics & Force Dynamics

Telescopic cylinder stages do not extend randomly; extension follows fluid pressure dynamics acting on diminishing surface areas ($F = P \times A$).

Because hydraulic line pressure applies equally, the largest diameter stage always extends first, supplying maximum initial thrust when the dump body is fully loaded at rest.

Stage 1: Maximum Breakaway Force

Mechanics: The fluid pushes the largest sleeve first due to its larger effective piston area.
Application Fit: At $0^\circ$ incline, the dump body requires maximum torque to overcome static load weight and mechanical friction. Stage 1 delivers this peak initial breakaway force.

Stage 2: Intermediate Speed & Force

Mechanics: Once Stage 1 reaches its internal stop ring, oil pressurizes the second sleeve.
Application Fit: As the tipping angle increases, gravity assists in moving the payload, reducing required lifting torque. Stage 2 balances moderate thrust with increased extension velocity ($v = Q / A$).

Stage 3: High Speed to Full Dump Angle

Mechanics: The smallest diameter rod extends last, achieving the final stroke to reach target dump angles (typically $45^\circ – 55^\circ$).
Application Fit: Gravity handles the majority of material slide-off at steep inclines, allowing the smallest stage to complete the hoist safely.

Single-Acting vs. Double-Acting Operation

Single-Acting (Industry Standard): Hydraulic oil extends the cylinder; the weight of the empty dump body pushes fluid back into the reservoir during retraction.
Double-Acting: Pressurized oil drives both extension and retraction. Essential for specialized applications where sticky payloads or low-tilt chassis prevent gravity retraction.

Preventing Field Failures: Key Engineering Considerations

Long-stroke telescopic cylinders face intense structural stress on off-road construction sites. Sourcing teams should verify these construction standards to avoid field breakdowns:

1. Buckling & Side-Load Resistance

Uneven ground during dumping creates severe lateral forces (side loads). High-quality cylinders feature heavy-wall seamless steel tubing (e.g., ST52 / Q355D) combined with wide bronze guide rings to absorb bending moments and prevent sleeve binding.

2. Chrome Plating & Seal Durability

Road salt, asphalt grit, and weather exposure can score unplated sleeves, destroying oil seals. Ensure each stage undergoes precision ground micro-polishing and hard chrome plating with a minimum 25–30 micron layer.

3. Cushioning & Stop Ring Integrity

Impact loads when reaching full extension can damage end caps. Heavy-duty internal stop rings and hydraulic cushioning dampen end-of-stroke shocks, extending seal life.

Selection Checklist: What to Specify When Buying

When requesting a quote or designing a replacement cylinder, ensure you have defined the following technical specifications:

Operating Pressure: Standard dump truck systems run at 170–210 bar (2,500–3,000 PSI).
Stroke Length & Closed Dimension: Measure pin-to-pin distance when fully closed vs. required extension for desired tipping angle.
Mounting Style:
- Front-Mount (Trunnion): Reduces frame stress on long bodies.
- Under-Body (Clevis/Pin-Pin): Ideal for tight chassis dimensions.
Oil Port Size & Placement: Match thread size (NPT, SAE, or BSPP) and port angle to your existing valve manifold.

Need Custom 3-Stage Cylinders for Your Fleet or OEM Build?

Selecting the correct cylinder geometry prevents premature wear, fluid leaks, and costly downtime.

At Hydraulicsmfg, we manufacture custom and standard 3-stage telescopic cylinders engineered for severe duty cycles, featuring hard-chrome plated sleeves, premium polyurethane seals, and custom mounting options.

Ready to Quote?

To get an accurate technical drawing and competitive pricing, send us your requirements with:

Required Payload Capacity / Dump Weight
Target Stroke Length & Closed Length
Preferred Mounting Style & Working Pressure

Contact Our Engineering Team today to discuss your dump truck hydraulic requirements.
